Cantilever Saddle Brackets

Cantilever street name sign brackets offering the most secure side-mounting solution available. Brackets can be strapped to post. Signs are secured to the brackets using pop rivets.

Installation Benefits

No drilling required: Strapping installation eliminates permanent holes in posts
Pop rivet sign attachment: Reliable, easy sign installation
Traffic clearance: Side-mount design avoids overhead obstructions
Most secure: Heavy duty option for side-mounting street name signs

Selection Guide

Cantilever Arm Brackets

  • Used with utility poles/wood poles
  • 20ft high installations
  • Downtown commercial installations

Cantilever Saddle Brackets

  • Used with round and square posts
  • 10-14ft high installations
  • Suburban installations

Capacity Comparison

Bracket Type Sign Length Support Construction
Standard Cantilever Arm 18″ – 30″ Two-piece assembly
Heavy Duty Cantilever Arm 36″ – 48″ Heavy extrusion channel
Ribbed Double T 54″ – 72″ Double channel, double clamp
Saddle Assemblies 18″ – 54″ Two-piece with T-extrusion

Saddle Assembly Sizing

Large Assemblies: Can be used alone for 6″ or 9″ high signs
Small Assemblies: May require two units for the same 6″ or 9″ sign application
Note: Multiple signs cannot be mounted on a single cantilever bracket

Real World Applications

Cantilever brackets and street name sign installations in municipal and urban areas

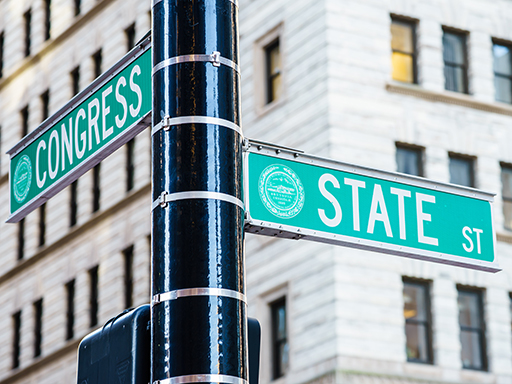

Cantilever arm bracket in a downtown setting, demonstrating strapping installation method

Cantilever arm bracket supporting street name sign, showing heavy-duty side-mounting solution with high traffic clearance

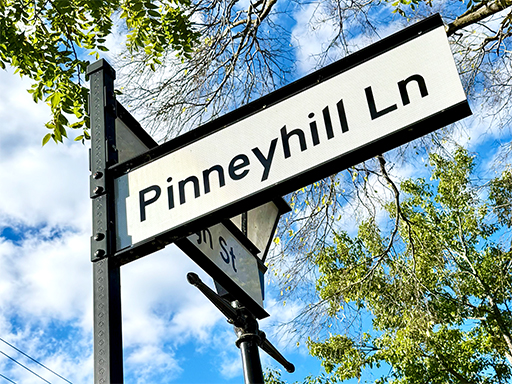

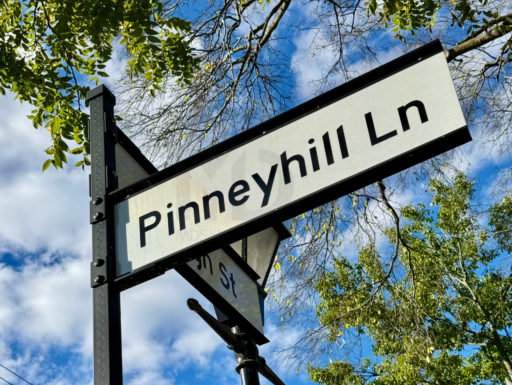

Cantilever saddle bracket (powder coated in black) secures street name sign in a suburban setting
