Adjustable Angle Sign Brackets

Adjustable cross pieces and caps that mount street name signs at any angle, available in 3-1/2", 5-1/2" and 12" slot for both flat and extruded blades. Perfect for intersections where streets don't meet at 90-degree angles - adjust the bracket to align signs parallel to the road direction.

Shop Post CapsShop Cross PiecesMore Information

Adjustable Angle Post Caps

For single street applications - bracket mounts on top of post

Important: Angle Adjustment

Brackets must be adjusted before or during installation, while the sign blade is being inserted into the slot. Angle cannot be changed after the sign is secured in place.

Understanding Your Options

Adjustable Angle Post Caps

Single street applications

  • Bracket mounts on top of post
  • Holds one street name sign
  • Adjustable angle for road alignment

Adjustable Angle Cross Pieces

Multi-street intersections

  • Sign-to-sign mounting system
  • Adjustable angle for road alignment

Bracket Size Selection Guide

Bracket Slot Length Recommended Sign Size Blade Type Compatibility
3-1/2″ Up to 18″ Flat & Extruded
5-1/2″ 18″ to 30″ Flat & Extruded
12″ 30″ to 42″ Flat & Extruded

Technical Specifications & Compatibility

Flat vs. Extruded Blade Compatibility

Flat blades: Standard thickness signs suitable for most applications. Lighter weight and cost-effective for general street signage.
Extruded Blades: Thicker, heavy-duty signs with enhanced durability. Recommended for high-wind areas and premium installations.

Installation Requirements

Hardware needed:

  • Standard set screws (included with pre-drilled and tapped brackets)
  • Standard T-Handle tool for installation
  • Optional: Vandal-proof set screws with specialized T-Handle tool for enhanced security
All mounting hardware and tools are available in our Sign Mounting Fasteners section.

Real World Applications

Street name signs with adjustable brackets

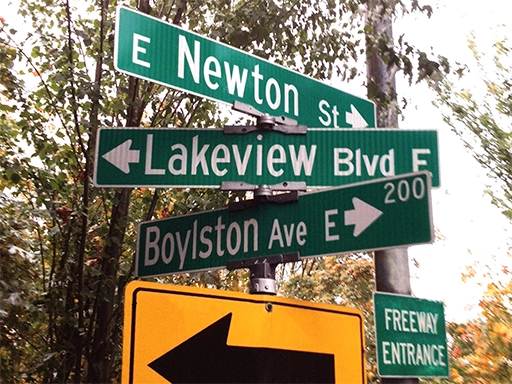

Post Cap and Cross Piece Application: Multiple Street name signs using adjustable angle cross piece mounting system at complex intersection

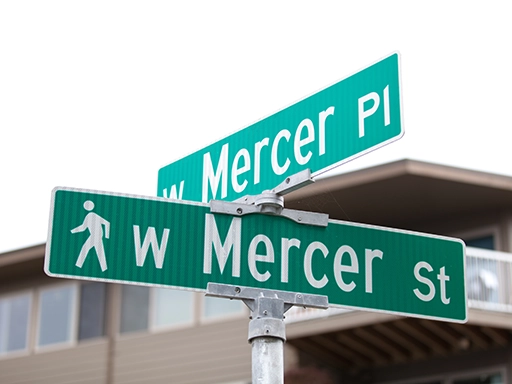

Post Cap and Cross Piece Application: Street name signs mounted on top of a post using a post cap and an adjustable angle cross-piece

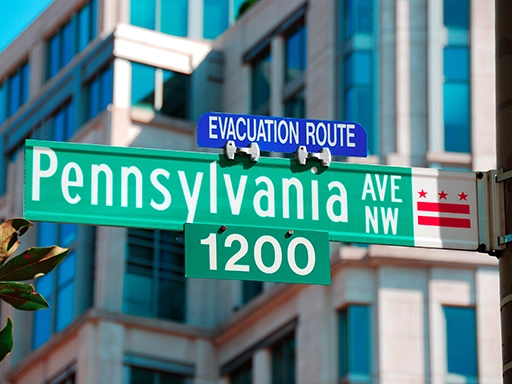

Cross Piece Application: Sign-on-sign mounting using an adjustable cross piece on a side mount application
